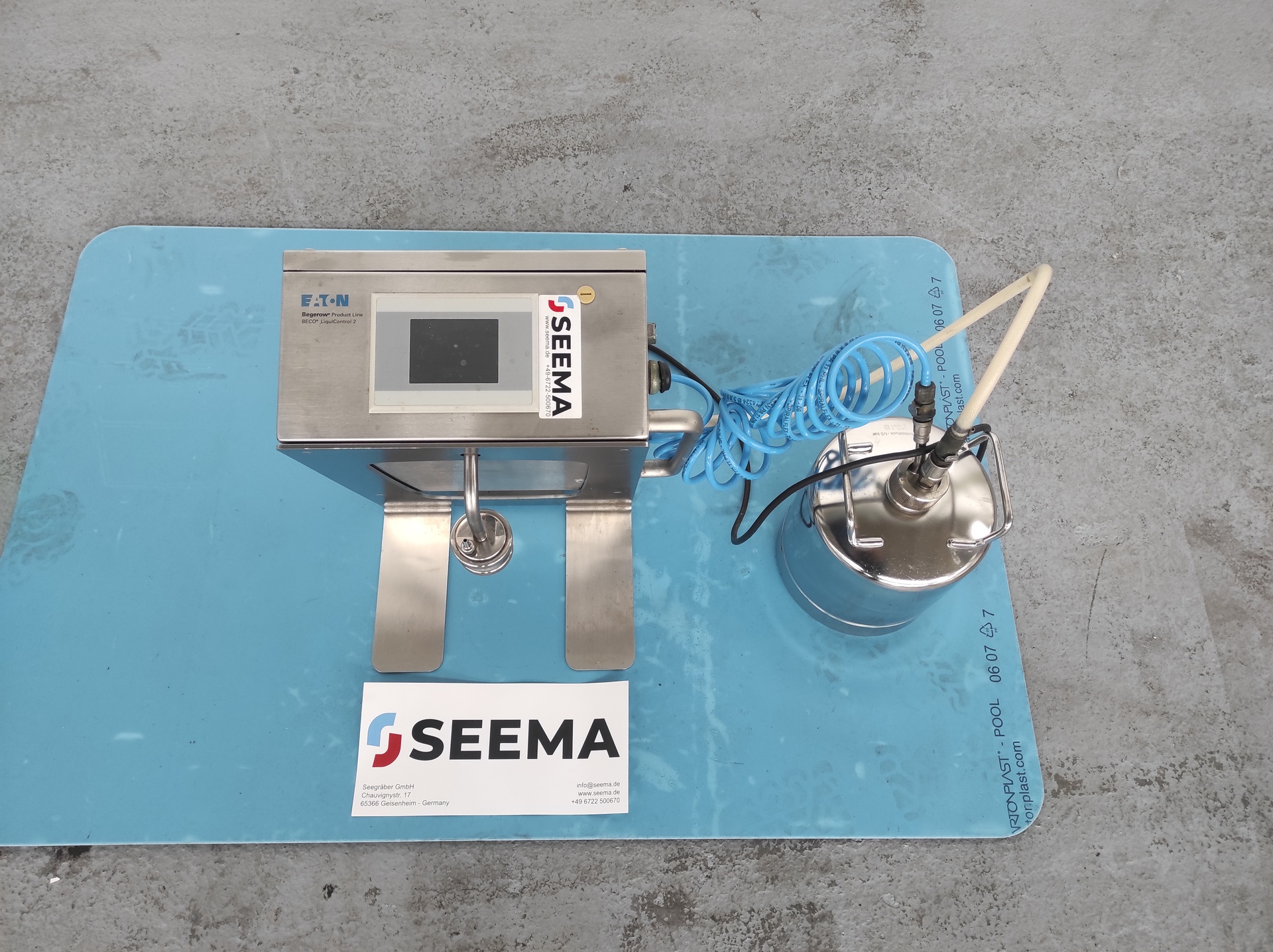

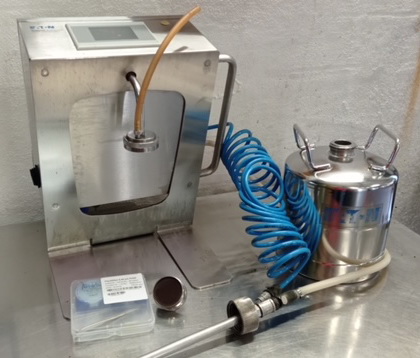

EATON BECO index measuring device

- Ideal assessment of the filterability and the quality of the filtrate

- Longer total service life of the membrane filter cartridges through pre-filtration and targeted determination of the regeneration intervals

- Reduction of downtime during filling due to perfect pre-filtration

- Enables optimum choice of cartridge filter systems due to pilot tests

- Polluting load analysis of service media (rinse water, steam condensate)

- Easy handling and cleaning of the device

- Variable filtration pressure

- High flexibility due to a separate container for liquid to be filtered

- Display of all measured data from archive

- Ethernet interface for data download

SPECIFICATIONS:

Max. volume: 1.43 gal (5.4 l)

Operating pressure: 0 – 43.5 psi (0 – 300 kPa, 0 – 3 bar)

Membrane diameter: 1.85 in (47 mm)

Membrane, pore size: 0.45 µm; 0.65 µm

Max. temperature of medium: 176 °F (80 °C)

Max. ambient temperature: 33.8 – 122 °F (1 – 50 °C)

Weight: 37.5 lb (17 kg)

Dimensions (L x W x H): M Measuring device: 13.8 x 11.8 x 17.7 in (350 x 300 x 450 mm) Container: Ø 7.9 in, height: 13.8 in (Ø 200 mm, H: 350 mm)

Display: Micro-Panel 3,5" Color-Touch-Display
